Standard-series galvanized steel main posts with wall thickness from 2.0 mm, subject to the approved model specification.
Standard playground series
Commercial Pirate Ship Theme Playground Equipment
Standard playground series · Pirate ship and nautical configurations
Commercial pirate ship playground equipment for parks, schools, resorts and public recreation projects. The series uses Ø114 mm main posts and mainly 110 × 110 cm platforms, with larger or irregular platforms where the approved layout requires them. Individual model dimensions are shown below.
Primary square platform reference for standard playground layouts.
Larger or irregular platforms can be used where the approved theme and circulation route require them.
Layout, fall height, safety area and ASTM F1487 or EN 1176 document scope are confirmed for the selected configuration.
Designed around the project site
A Pirate Ship Series Built for Project Planning
The ZZRS Pirate Ship Series combines ship decks, nautical panels, elevated platforms, slides and climbing access for parks, schools, resorts and public recreation projects. Layout, colors and selected functions are reviewed for each approved configuration.
Recognizable nautical identity
Ship bows, sails, flags, deck details and nautical panels give the series a clear pirate-ship theme while colors and decorative details remain project-review items.
Multiple play routes
Configurations can combine elevated decks, slides, climbing access, bridges, tunnels and nautical activity elements according to the approved layout.
Clear model comparison
The current product record and four additional Pirate Ship Series configurations are shown below with reference images and overall dimensions. Contact ZZRS to review the most suitable option.
Confirmed starting data
HD007 Reference Specifications
This table applies only to the current HD007 product record (25HD007), including its 700 × 480 × 450 cm size. Dimensions and technical details for other Pirate Ship Series models must be confirmed separately in the approved layout and quotation.
| Model | 25HD007 |
|---|---|
| Overall dimensions | 700 × 480 × 450 cm — L × W × H |
| Main posts | Ø114 mm galvanized steel pipe with wall thickness from 2.0 mm; final steel grade and finish follow the approved specification |
| Platforms and steps | Main square platform reference 110 × 110 cm, formed from 2.0 mm cold-rolled steel; 116 cm or larger irregular platforms may be used where the approved design requires them |
| Steel accessories | Ø25/32/38/40/50/60 mm welded steel tube with 1.8 mm wall thickness where applicable, finished with outdoor polyester/TGIC powder coating |
| Plastic and panel elements | Engineering plastic, LLDPE and/or HDPE selected according to the approved configuration, with UV and light-stabilizing additives where specified |
| Fasteners | 304 stainless steel fasteners are the general project reference |
| Rope and net components | 12 mm rope with a steel strand where rope-play components are included |
| Typical platform heights | 85 cm, 120 cm and 240 cm are common references; final heights and fall height depend on the selected layout |
| Customization | Layout, colors, theme direction and selected play functions can be reviewed for the project site |
| Final scope | Subject to the approved layout, safety review, technical specification, applicable document scope and quotation |
The HD007 table is a single-model reference. Do not apply its dimensions automatically to HD006, HD012, HD002 or HD003.
Choose by model
Pirate Ship Playground Models
Compare the available nautical-themed configurations below. These cards are for image, model and size reference only and do not open separate product pages.
HD007
700 × 480 × 450 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

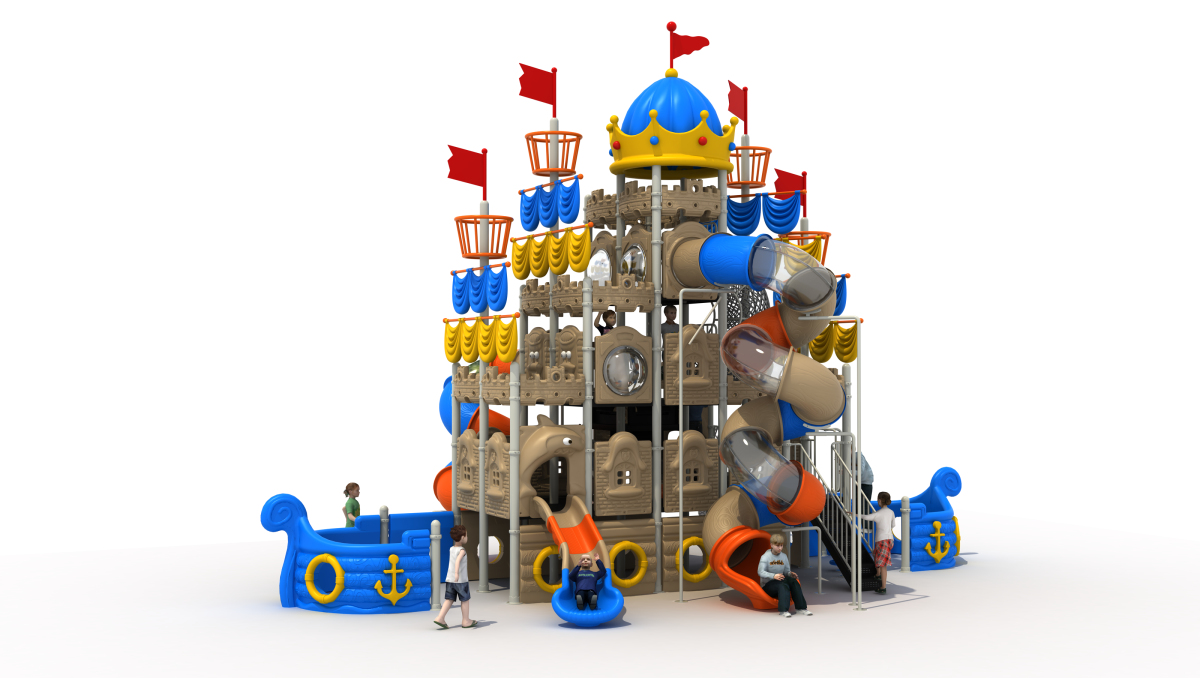

HD006
1160 × 710 × 650 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

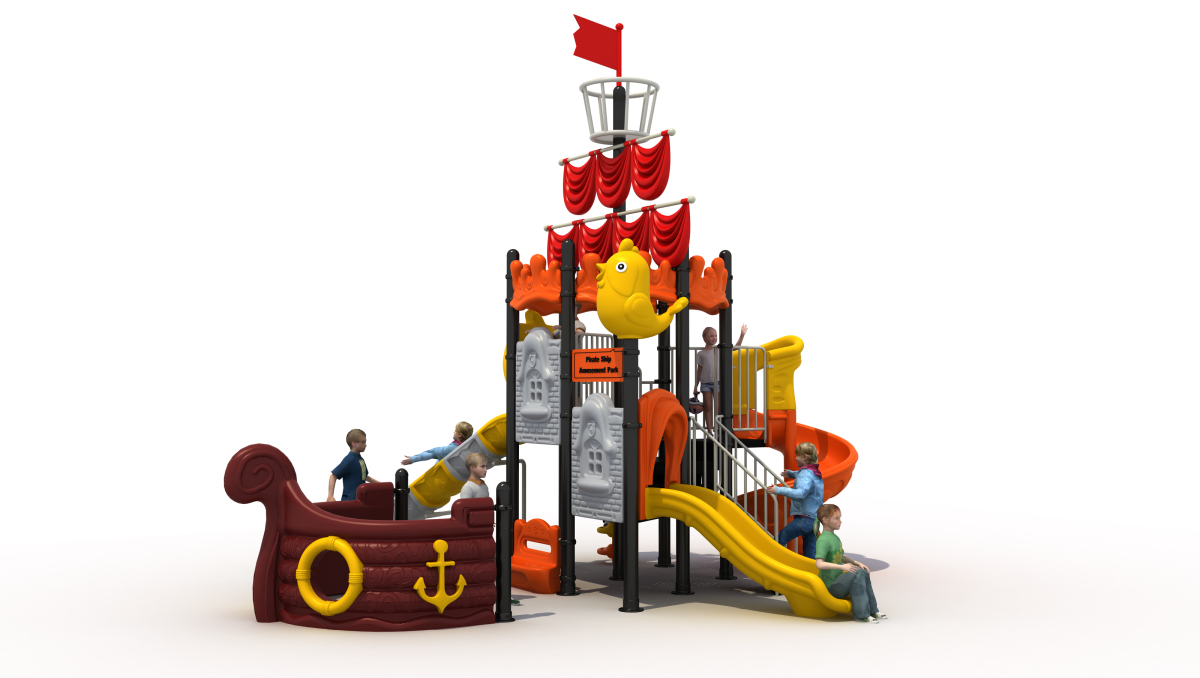

HD012
680 × 620 × 460 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

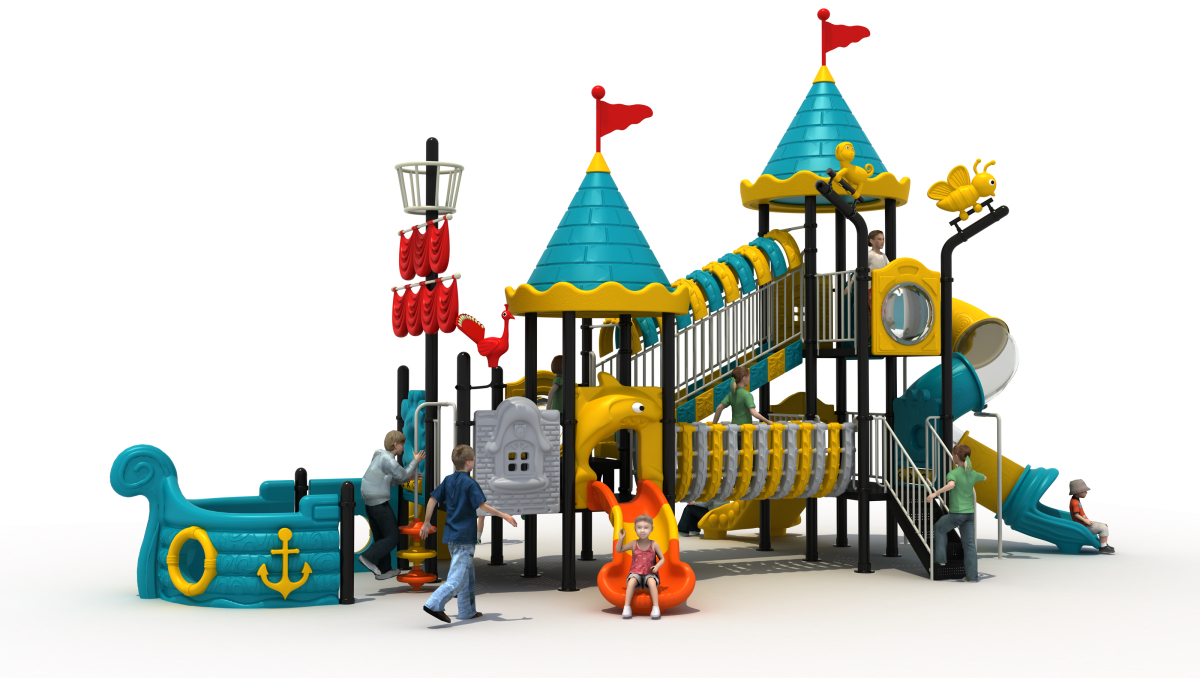

HD002
1140 × 580 × 550 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

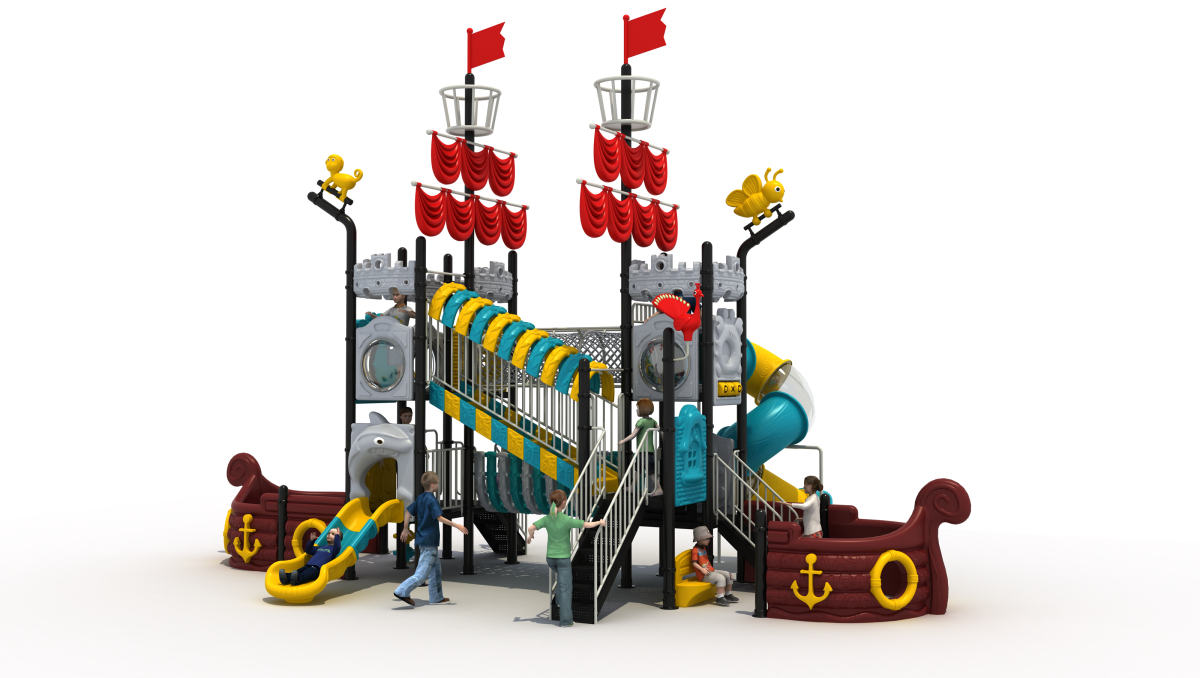

HD003
1060 × 670 × 660 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.
Looking for another pirate ship model? More sizes, layouts and selected play-function packages can be reviewed for your site. Contact ZZRS for more nautical-themed configurations.
Material and finish system
Standard-Series Construction References
Exact materials and finishes are confirmed for the selected configuration and destination requirements before production.
Galvanized steel structure
Main posts, platforms and selected steel accessories use galvanized or specified steel construction with outdoor polyester/TGIC powder-coated finishes.
LLDPE and HDPE components
Rotationally molded plastic and sheet panels are selected by component function, color, thickness and approved design requirements.
Rope and net elements
Where included, rope systems use a steel-reinforced construction suited to climbing and connecting functions within the approved layout.
Protected connections
304 stainless steel fasteners, rounded contact edges and protected connection details support assembly and long-term maintenance.
Recommended applications
Where Pirate Ship Series Playgrounds Can Be Reviewed
Site boundaries, circulation, intended users, procurement requirements and the required safety area should be checked before the layout is approved.
Public parksResidential communitiesResorts and hotelsMunicipal recreation areasSchools and kindergartensCommercial public spaces
Common buyer questions
Pirate Ship Series Project FAQ
Can the size or layout be customized?
Yes. Dimensions, access routes and selected play functions can be reviewed after the site information is provided.
Are Ø114 mm posts used for this standard series?
Ø114 mm is the standard main-post reference. Final wall thickness, steel grade and finish must be confirmed in the approved specification.
Which platform sizes can be used?
Many layouts use 110 × 110 cm square platforms. Selected designs can use 116 cm or larger irregular platforms where the approved route requires them.
Are more pirate ship models available?
Yes. The models shown above are reference options. Contact ZZRS with your site size, preferred functions and destination to review additional nautical-themed configurations.
Are ASTM F1487 or EN 1176 documents available?
Availability depends on the selected configuration and report scope. Confirm the report number, covered model, standard edition and destination requirements before tender or approval.
What is needed for a quotation?
Provide site dimensions, destination, intended users, preferred functions, quantity, budget range, schedule and planned installation method.
Start with the project site
Planning a Standard Playground Project?
Send the site dimensions, destination, intended users, preferred functions and applicable tender requirements. ZZRS can review this model or another standard configuration.
