Standard-series galvanized steel main posts with wall thickness from 2.0 mm, subject to the approved model specification.
Standard playground series
Commercial Helicopter Theme Playground Equipment
Standard playground series · Helicopter and aviation configurations
Commercial helicopter-themed playground equipment for parks, schools and public recreation projects. The series uses Ø114 mm main posts and mainly 110 × 110 cm platforms, with larger or irregular platforms where the approved layout requires them. Individual model dimensions are shown below.
Primary square platform reference for standard playground layouts.
Larger or irregular platforms can be used where the approved theme and circulation route require them.
Layout, fall height, safety area and ASTM F1487 or EN 1176 document scope are confirmed for the selected configuration.
Designed around the project site
A Helicopter Series Built for Project Planning
The ZZRS Helicopter Series combines cockpit-inspired forms, aviation-themed panels, elevated platforms, slides and climbing access for parks, schools and public recreation projects. Layout, colors and selected functions are reviewed for each approved configuration.
Recognizable aviation identity
Helicopter cabins, rotor details and cockpit-inspired panels give the series a clear visual theme while colors and decorative details remain project-review items.
Multiple play routes
Configurations can combine platforms, slides, climbing access, bridges, tunnels and aviation-themed activity panels according to the approved layout.
Clear model comparison
The current product record and four additional Helicopter Series configurations are shown below with reference images and overall dimensions. Contact ZZRS to review the most suitable option.
Confirmed starting data
FJ008 Reference Specifications
This table applies only to the current FJ008 product record (25FJ008), including its 450 × 240 × 270 cm size. Dimensions and technical details for other Helicopter Series models must be confirmed separately in the approved layout and quotation.
| Model | 25FJ008 |
|---|---|
| Overall dimensions | 450 × 240 × 270 cm — L × W × H |
| Main posts | Ø114 mm galvanized steel pipe with wall thickness from 2.0 mm; final steel grade and finish follow the approved specification |
| Platforms and steps | Main square platform reference 110 × 110 cm, formed from 2.0 mm cold-rolled steel; 116 cm or larger irregular platforms may be used where the approved design requires them |
| Steel accessories | Ø25/32/38/40/50/60 mm welded steel tube with 1.8 mm wall thickness where applicable, finished with outdoor polyester/TGIC powder coating |
| Plastic and panel elements | Engineering plastic, LLDPE and/or HDPE selected according to the approved configuration, with UV and light-stabilizing additives where specified |
| Fasteners | 304 stainless steel fasteners are the general project reference |
| Rope and net components | 12 mm rope with a steel strand where rope-play components are included |
| Typical platform heights | 85 cm, 120 cm and 240 cm are common references; final heights and fall height depend on the selected layout |
| Customization | Layout, colors, theme direction and selected play functions can be reviewed for the project site |
| Final scope | Subject to the approved layout, safety review, technical specification, applicable document scope and quotation |
The FJ008 table is a single-model reference. Do not apply its dimensions automatically to FJ022, FJ002, FJ019 or FJ012.
Choose by model
Helicopter Playground Models
Compare the available aviation-themed configurations below. These cards are for image, model and size reference only and do not open separate product pages.
FJ008
450 × 240 × 270 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

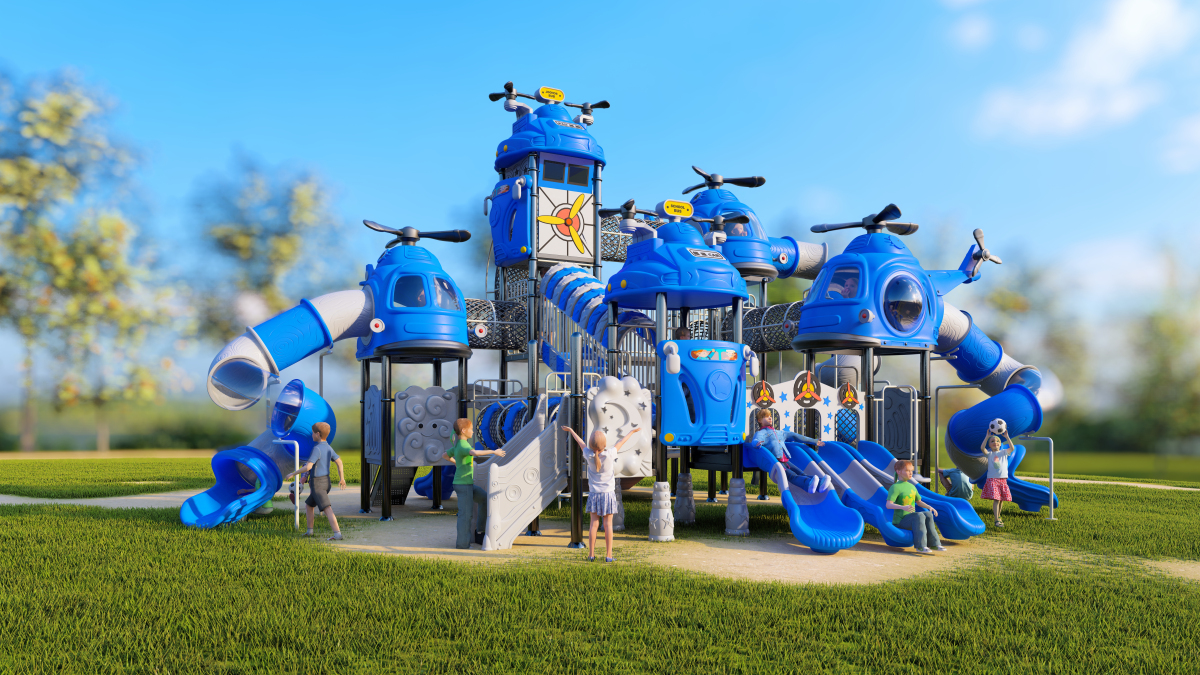

FJ022
1300 × 800 × 670 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

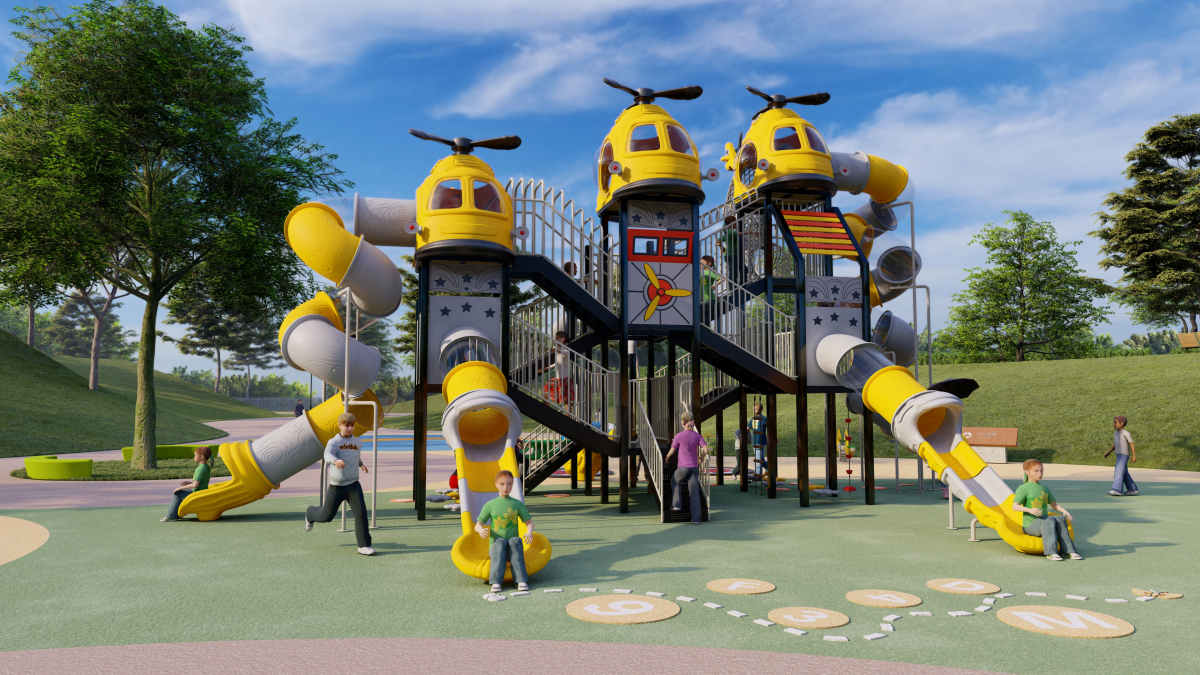

FJ002
1400 × 930 × 680 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

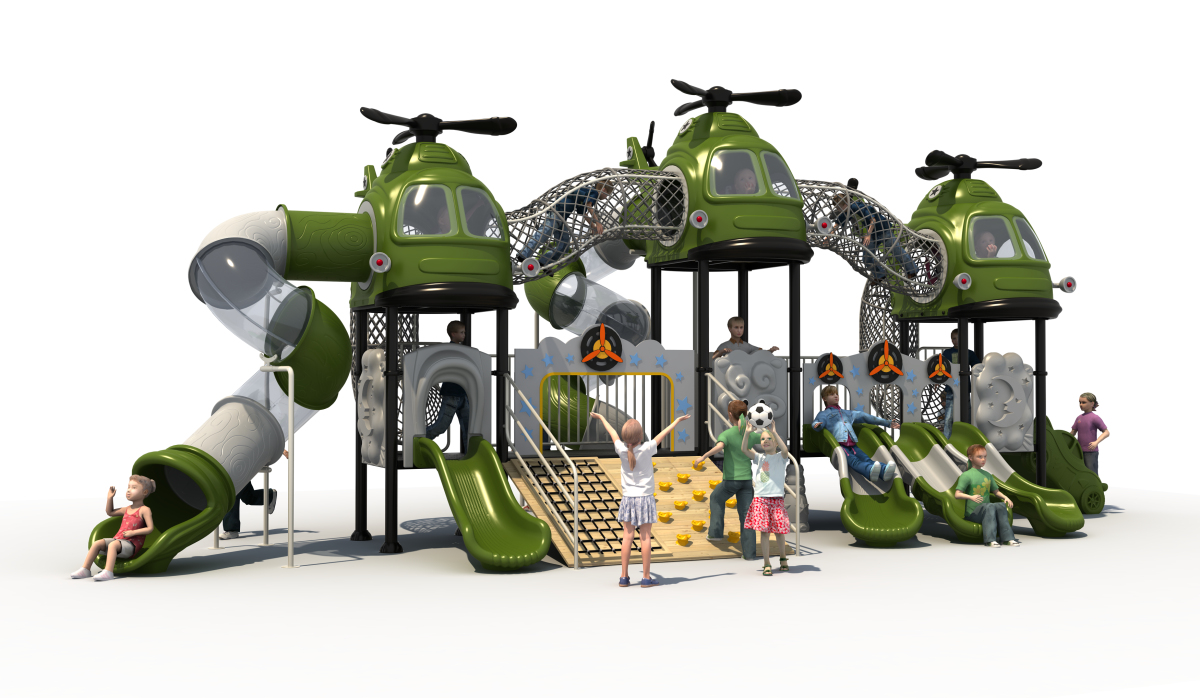

FJ019
1120 × 570 × 470 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.

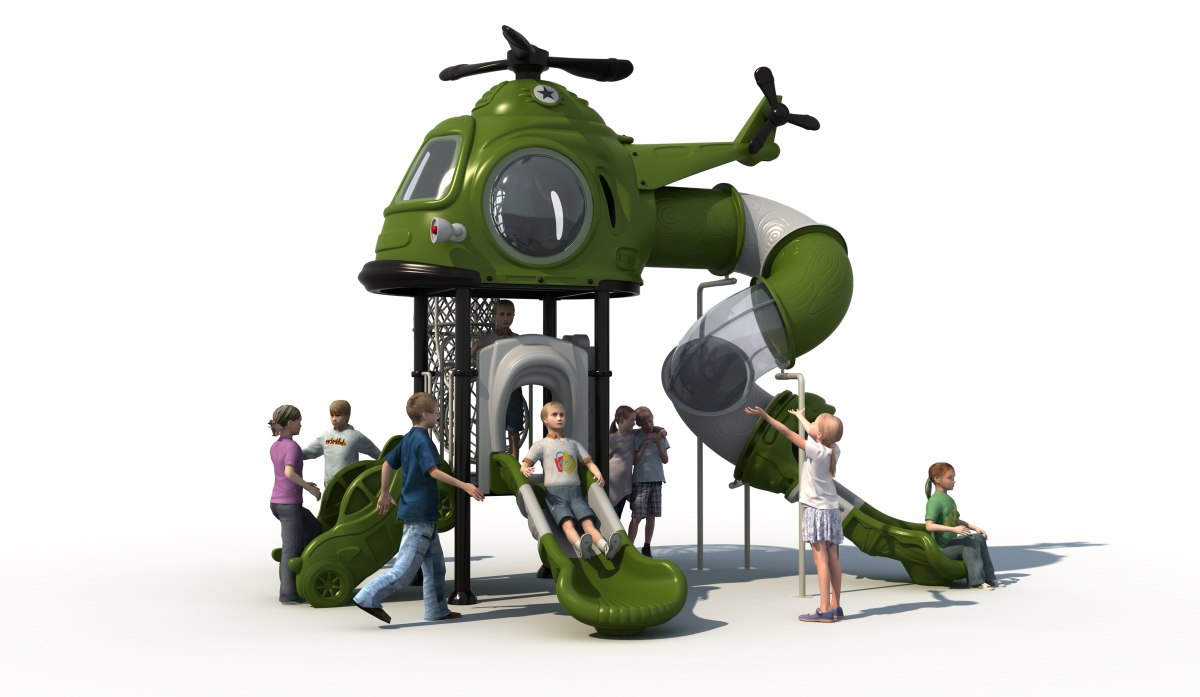

FJ012
500 × 410 × 420 cm · L × W × H
Ø114 mm main-post reference; platform configuration follows the approved model.
Looking for another helicopter model? More sizes, layouts and selected play-function packages can be reviewed for your site. Contact ZZRS for more aviation-themed configurations.
Material and finish system
Standard-Series Construction References
Exact materials and finishes are confirmed for the selected configuration and destination requirements before production.
Galvanized steel structure
Main posts, platforms and selected steel accessories use galvanized or specified steel construction with outdoor polyester/TGIC powder-coated finishes.
LLDPE and HDPE components
Rotationally molded plastic and sheet panels are selected by component function, color, thickness and approved design requirements.
Rope and net elements
Where included, rope systems use a steel-reinforced construction suited to climbing and connecting functions within the approved layout.
Protected connections
304 stainless steel fasteners, rounded contact edges and protected connection details support assembly and long-term maintenance.
Recommended applications
Where Helicopter Series Playgrounds Can Be Reviewed
Site boundaries, circulation, intended users, procurement requirements and the required safety area should be checked before the layout is approved.
Public parksResidential communitiesGovernment projectsMunicipal recreation areasSchools and kindergartensCommercial public spaces
Common buyer questions
Helicopter Series Project FAQ
Can the size or layout be customized?
Yes. Dimensions, access routes and selected play functions can be reviewed after the site information is provided.
Are Ø114 mm posts used for this standard series?
Ø114 mm is the standard main-post reference. Final wall thickness, steel grade and finish must be confirmed in the approved specification.
Which platform sizes can be used?
Many layouts use 110 × 110 cm square platforms. Selected designs can use 116 cm or larger irregular platforms where the approved route requires them.
Are more helicopter models available?
Yes. The models shown above are reference options. Contact ZZRS with your site size, preferred functions and destination to review additional aviation-themed configurations.
Are ASTM F1487 or EN 1176 documents available?
Availability depends on the selected configuration and report scope. Confirm the report number, covered model, standard edition and destination requirements before tender or approval.
What is needed for a quotation?
Provide site dimensions, destination, intended users, preferred functions, quantity, budget range, schedule and planned installation method.
Start with the project site
Planning a Standard Playground Project?
Send the site dimensions, destination, intended users, preferred functions and applicable tender requirements. ZZRS can review this model or another standard configuration.
