Standard-series galvanized steel main posts with wall thickness from 2.0 mm, subject to the approved model specification.
Standard playground series
Commercial Castle Theme Playground Equipment
Standard playground series · Commercial castle configurations
Commercial castle-themed playground equipment for parks, residential communities and public projects. The Castle Series uses Ø114 mm main posts and mainly 110 × 110 cm platforms, with larger or irregular platforms where the approved layout requires them. Individual model dimensions are shown below.
Primary square platform reference for standard playground layouts.
Larger or irregular platforms can be used where the approved theme and circulation route require them.
Layout, fall height, safety area and ASTM F1487 or EN 1176 document scope are confirmed for the selected configuration.
Designed around the project site
A Castle Series Built for Project Planning
The Castle Series combines themed towers, elevated platforms, slides, climbing access and activity elements for parks, residential communities and public recreation projects. Layout, colors and selected functions are reviewed for each approved configuration.
Recognizable castle theme
castle towers, roof forms and themed decorative panels give the series a clear identity while colors and selected decorations remain project-review items.
Multiple play routes
The current configuration combines platforms, slides, climbing access and castle-themed activity elements. Final functions follow the approved layout.
Clear model comparison
Five castle configurations are shown together below so buyers can compare their scale without opening separate product pages.
Confirmed starting data
CB017 Reference Specifications
This table applies only to the current CB017 product record (25CB017), including its 830 × 360 × 520 cm size. Dimensions and technical details for other Castle Series models must be confirmed separately in the approved layout and quotation.
| Model | 25CB017 |
|---|---|
| Overall dimensions | 830 × 360 × 520 cm — L × W × H |
| Main posts | Ø114 mm galvanized steel pipe with wall thickness from 2.0 mm; final steel grade and finish follow the approved specification |
| Platforms and steps | Main square platform reference 110 × 110 cm, formed from 2.0 mm cold-rolled steel; 116 cm or larger irregular platforms may be used where the approved design requires them |
| Steel accessories | Ø25/32/38/40/50/60 mm welded steel tube with 1.8 mm wall thickness where applicable, finished with outdoor polyester/TGIC powder coating |
| Plastic and panel elements | Engineering plastic, LLDPE and/or HDPE selected according to the approved configuration, with UV and light-stabilizing additives where specified |
| Fasteners | 304 stainless steel fasteners are the general project reference |
| Rope and net components | 12 mm rope with a steel strand where rope-play components are included |
| Typical platform heights | 85 cm, 120 cm and 240 cm are common references; final heights and fall height depend on the selected layout |
| Customization | Layout, colors, theme direction and selected play functions can be reviewed for the project site |
| Final scope | Subject to the approved layout, safety review, technical specification, applicable document scope and quotation |
Contact surfaces, connection angles and exposed hardware should use rounded or protected detailing as required by the approved design.
Compare the Castle Series
Castle Playground Models
Use the images and dimensions below as starting references. Cards are for comparison only and do not open separate product pages; final layout, safety area and specifications are confirmed for the selected configuration.
CB017
830 × 360 × 520 cm
Ø114 mm main-post reference; platform layout confirmed for the approved model.

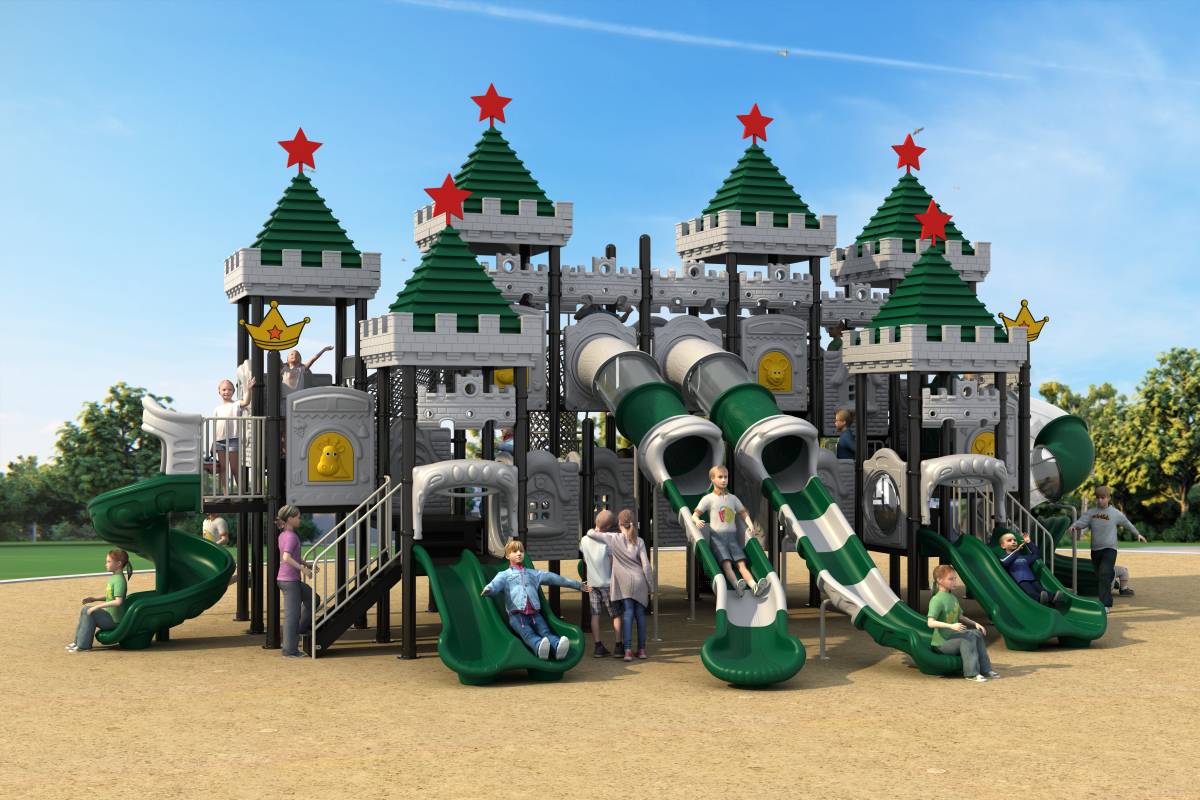

CB021
1270 × 790 × 550 cm
Ø114 mm main-post reference; platform layout confirmed for the approved model.

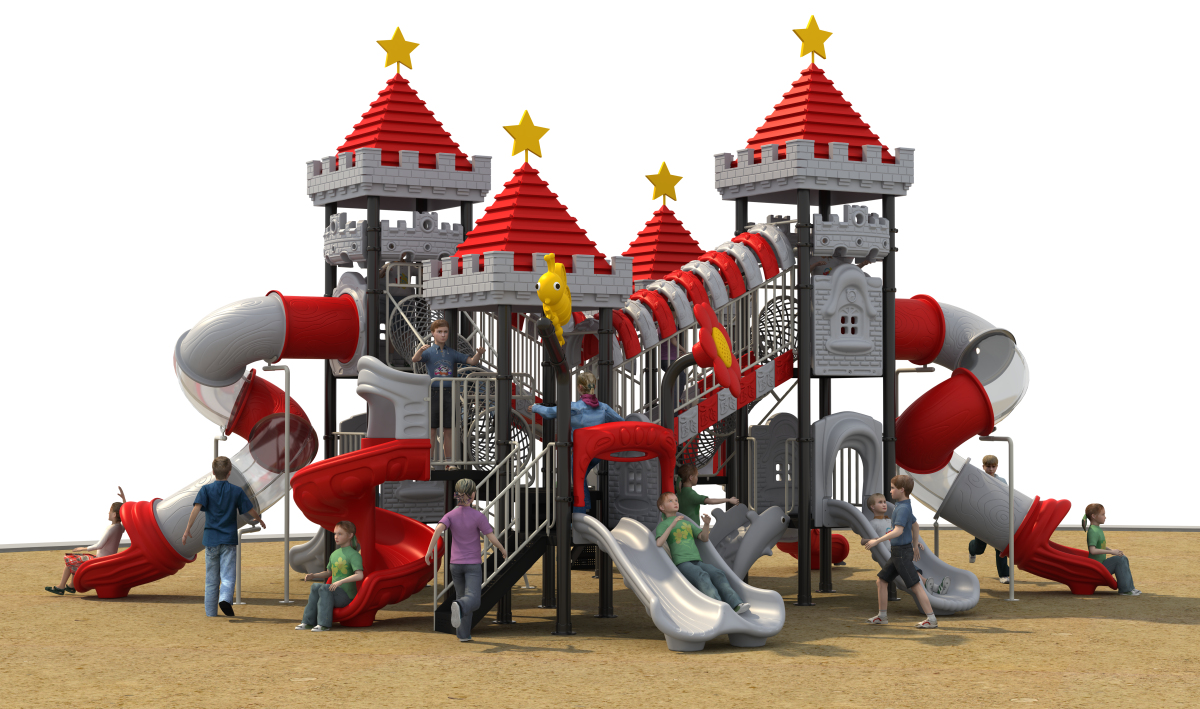

CB002
980 × 920 × 550 cm
Ø114 mm main-post reference; platform layout confirmed for the approved model.

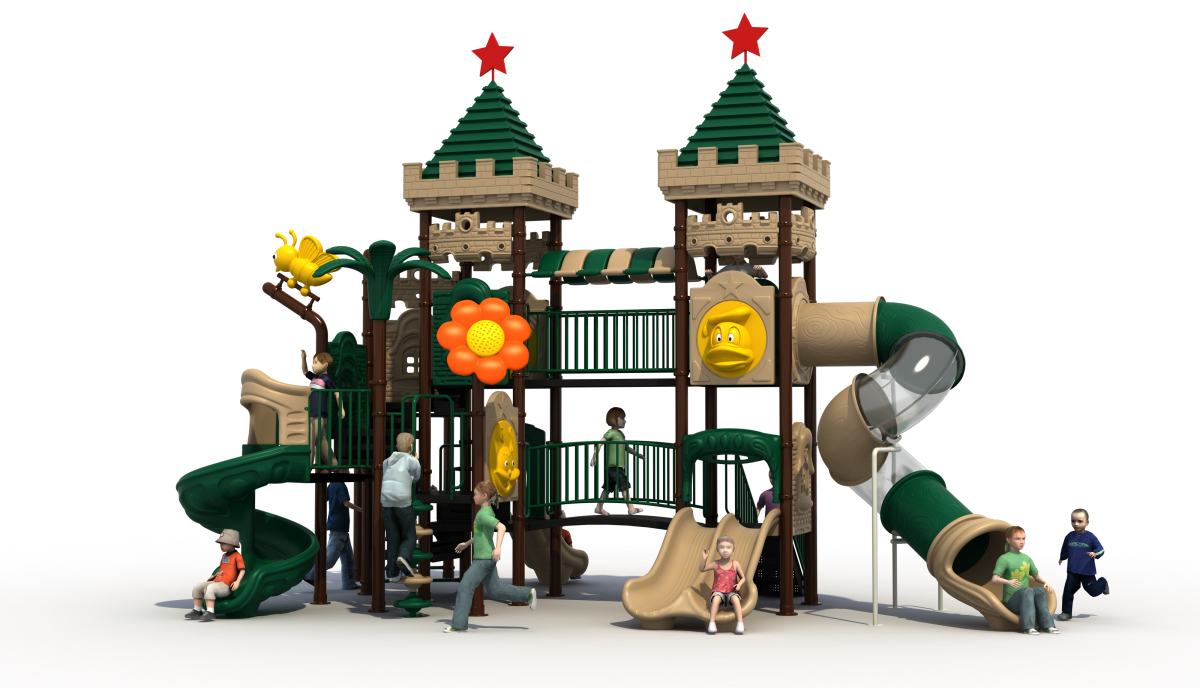

CB006
860 × 520 × 550 cm
Ø114 mm main-post reference; platform layout confirmed for the approved model.

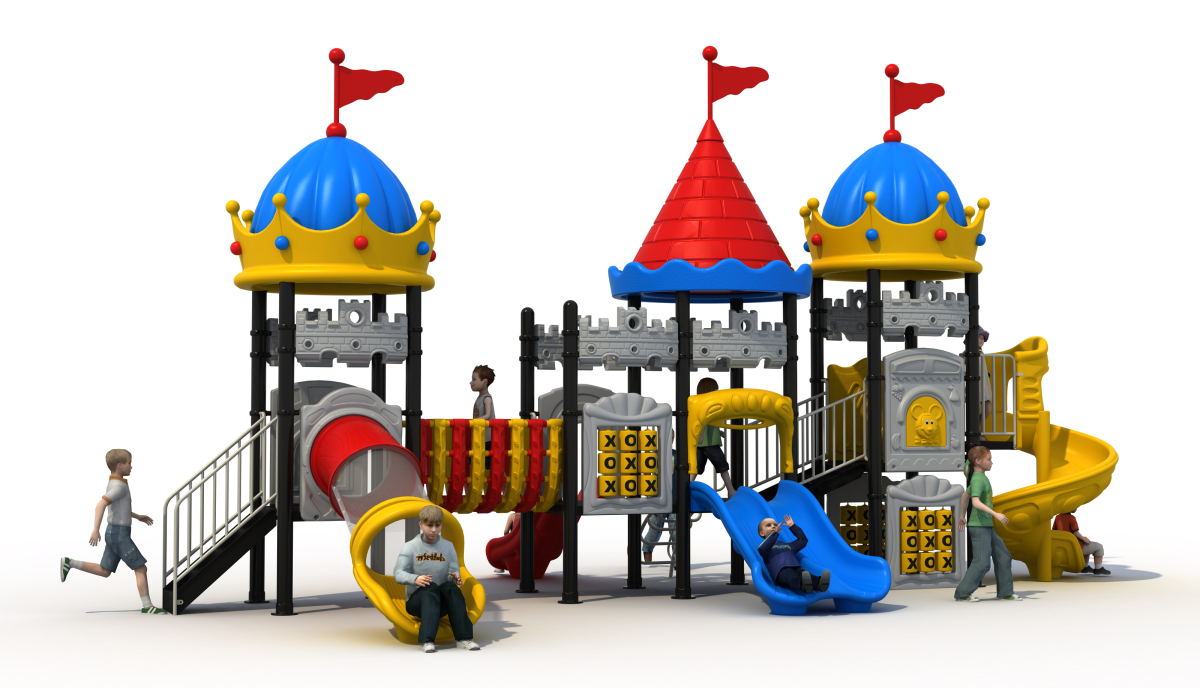

CB023
950 × 530 × 450 cm
Ø114 mm main-post reference; platform layout confirmed for the approved model.
Looking for another castle model? Send the site dimensions, destination and preferred play functions. Contact ZZRS for more castle configurations.
Material and finish system
Standard-Series Construction References
Exact materials and finishes are confirmed for the selected configuration and destination requirements before production.
Galvanized steel structure
Main posts, platforms and selected steel accessories use galvanized or specified steel construction with outdoor polyester/TGIC powder-coated finishes.
LLDPE and HDPE components
Rotationally molded plastic and sheet panels are selected by component function, color, thickness and approved design requirements.
Rope and net elements
Where included, rope systems use a steel-reinforced construction suited to climbing and connecting functions within the approved layout.
Protected connections
304 fasteners, rounded contact edges and protected connection details support safe assembly and long-term maintenance.
Recommended applications
Where Castle Series Playgrounds Can Be Reviewed
Site boundaries, circulation, intended users, procurement requirements and the required safety area should be checked before the layout is approved.
Public parksResidential communitiesGovernment projectsMunicipal recreation areasSchools and kindergartensCommercial public spaces
Common buyer questions
Castle Series Project FAQ
Can the size or layout be customized?
Yes. Dimensions, access routes and selected play functions can be reviewed after the site information is provided.
Are Ø114 mm posts used for this standard series?
Ø114 mm is the standard main-post reference. Final wall thickness, steel grade and finish must be confirmed in the approved specification.
Which platform sizes can be used?
Many layouts use 110 × 110 cm square platforms. Selected designs can use 116 cm or larger irregular platforms where the approved route requires them.
Are more castle models available?
Yes. Contact ZZRS with the site size, destination and preferred play functions to review additional castle configurations without creating separate product pages.
Are ASTM F1487 or EN 1176 documents available?
Availability depends on the selected configuration and report scope. Confirm the report number, covered model, standard edition and destination requirements before tender or approval.
What is needed for a quotation?
Provide site dimensions, destination, intended users, preferred functions, quantity, budget range, schedule and planned installation method.
Start with the project site
Planning a Standard Playground Project?
Send the site dimensions, destination, intended users, preferred functions and applicable tender requirements. ZZRS can review this model or another standard configuration.
