Standard-series galvanized steel main posts with wall thickness from 2.0 mm, subject to the approved model specification.
Standard playground series

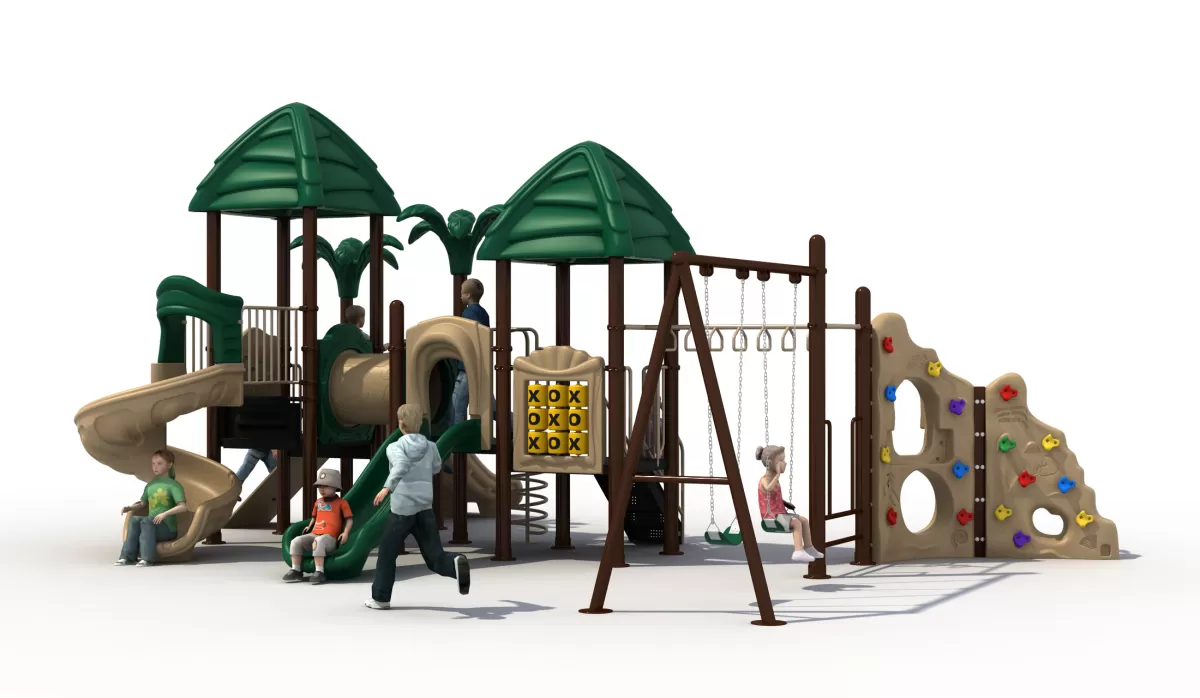

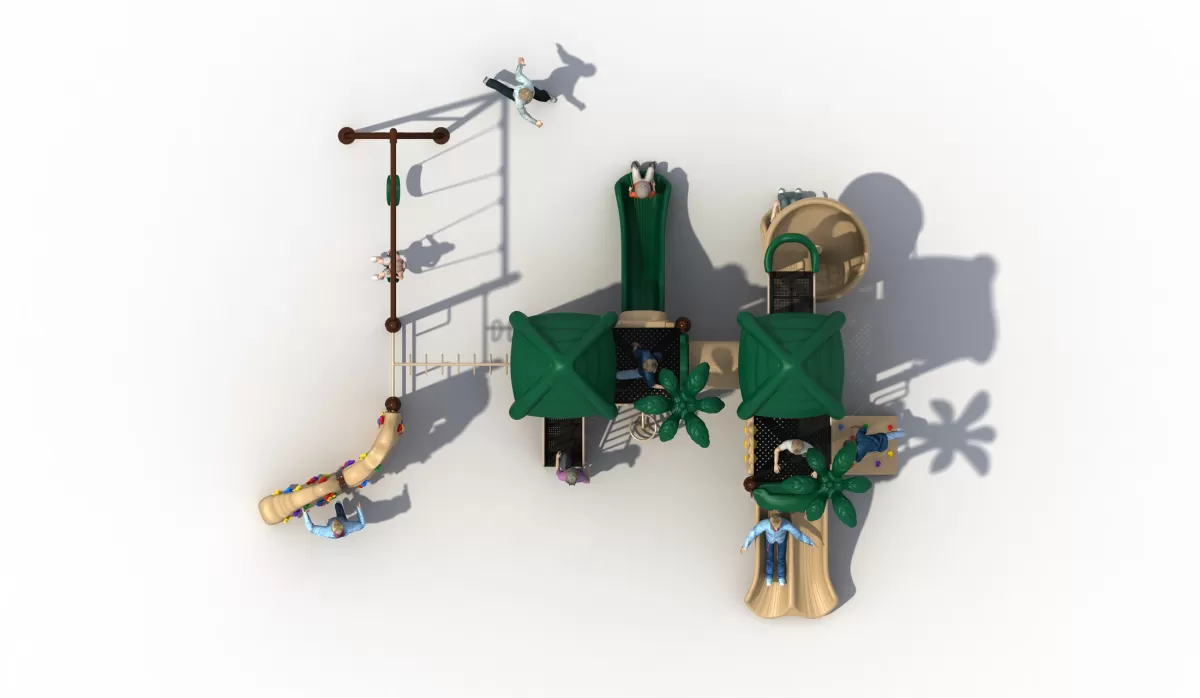

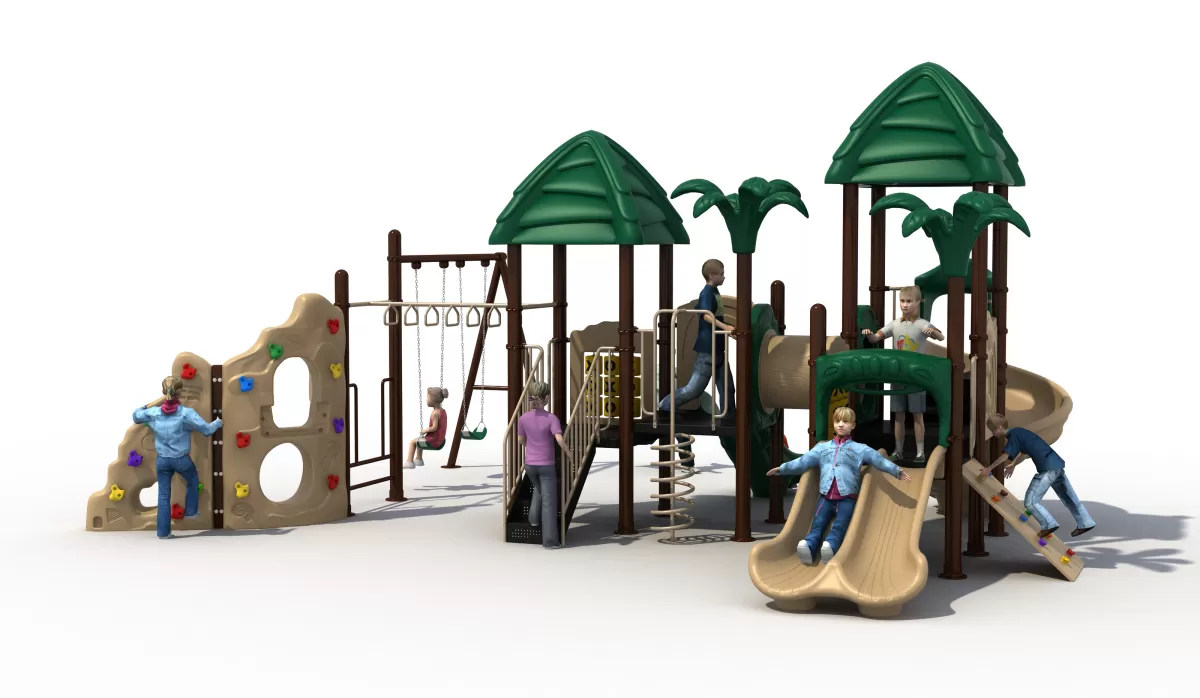

Commercial Classic - Rainforest Edition Series Playground Equipment
Standard playground · Model 26PT021 · 860 × 660 × 390 cm
Model 26PT021 is a commercial rainforest-themed playground with leaf canopy elements, platforms, slides, climbing access and activities. Layout, dimensions, colors and functions are reviewed according to the project site and quotation scope.
Primary square platform reference for standard playground layouts.
Larger or irregular platforms can be used where the approved theme and circulation route require them.
Layout, fall height, safety area and ASTM F1487 or EN 1176 document scope are confirmed for the selected configuration.
Designed around the project site
A rainforest Playground Built for Project Planning
Model 26PT021 is a commercial rainforest-themed playground with leaf canopy elements, platforms, slides, climbing access and activities. Layout, dimensions, colors and functions are reviewed according to the project site and quotation scope.
Recognizable rainforest theme
leaf canopy and nature-inspired rainforest elements give the series a clear identity while colors and selected decorations remain project-review items.
Multiple play routes
The current configuration combines platforms, slides, climbing access and transition elements. Final functions follow the approved layout.
Project-based review
Layout, materials, safety area, documents, packing and installation support are confirmed through the approved specification and quotation.
Confirmed starting data
Model 26PT021 Specifications
The following information is the current product record. Final structural, safety and document scope remains subject to the approved project specification.
| Model | 26PT021 |
|---|---|
| Overall dimensions | 860 × 660 × 390 cm — L × W × H |
| Main posts | Ø114 mm galvanized steel pipe with wall thickness from 2.0 mm; final steel grade and finish follow the approved specification |
| Platforms and steps | Main square platform reference 110 × 110 cm, formed from 2.0 mm cold-rolled steel; 116 cm or larger irregular platforms may be used where the approved design requires them |
| Steel accessories | Ø25/32/38/40/50/60 mm welded steel tube with 1.8 mm wall thickness where applicable, finished with outdoor polyester/TGIC powder coating |
| Plastic and panel elements | Engineering plastic, LLDPE and/or HDPE selected according to the approved configuration, with UV and light-stabilizing additives where specified |
| Fasteners | 304 stainless steel fasteners are the general project reference |
| Rope and net components | 12 mm rope with a steel strand where rope-play components are included |
| Typical platform heights | 85 cm, 120 cm and 240 cm are common references; final heights and fall height depend on the selected layout |
| Customization | Layout, colors, theme direction and selected play functions can be reviewed for the project site |
| Final scope | Subject to the approved layout, safety review, technical specification, applicable document scope and quotation |
Contact surfaces, connection angles and exposed hardware should use rounded or protected detailing as required by the approved design.
Material and finish system
Standard-Series Construction References
Exact materials and finishes are confirmed for the selected configuration and destination requirements before production.
Galvanized steel structure
Main posts, platforms and selected steel accessories use galvanized or specified steel construction with outdoor polyester/TGIC powder-coated finishes.
LLDPE and HDPE components
Rotationally molded plastic and sheet panels are selected by component function, color, thickness and approved design requirements.
Rope and net elements
Where included, rope systems use a steel-reinforced construction suited to climbing and connecting functions within the approved layout.
Protected connections
304 fasteners, rounded contact edges and protected connection details support safe assembly and long-term maintenance.
Recommended applications
Where Model 26PT021 Can Be Reviewed
Site boundaries, circulation, intended users, procurement requirements and the required safety area should be checked before the layout is approved.
Public parksResidential communitiesGovernment projectsMunicipal recreation areasSchools and kindergartensCommercial public spaces
Common buyer questions
Model 26PT021 Project FAQ
Can the size or layout be customized?
Yes. Dimensions, access routes and selected play functions can be reviewed after the site information is provided.
Are Ø114 mm posts used for this standard series?
Ø114 mm is the standard main-post reference. Final wall thickness, steel grade and finish must be confirmed in the approved specification.
Which platform sizes can be used?
Many layouts use 110 × 110 cm square platforms. Selected designs can use 116 cm or larger irregular platforms where the approved route requires them.
Can more models be added to this series?
Yes. Additional child product pages assigned below this series page will appear in the model selector automatically.
Are ASTM F1487 or EN 1176 documents available?
Availability depends on the selected configuration and report scope. Confirm the report number, covered model, standard edition and destination requirements before tender or approval.
What is needed for a quotation?
Provide site dimensions, destination, intended users, preferred functions, quantity, budget range, schedule and planned installation method.
Start with the project site
Planning a Standard Playground Project?
Send the site dimensions, destination, intended users, preferred functions and applicable tender requirements. ZZRS can review this model or another standard configuration.
